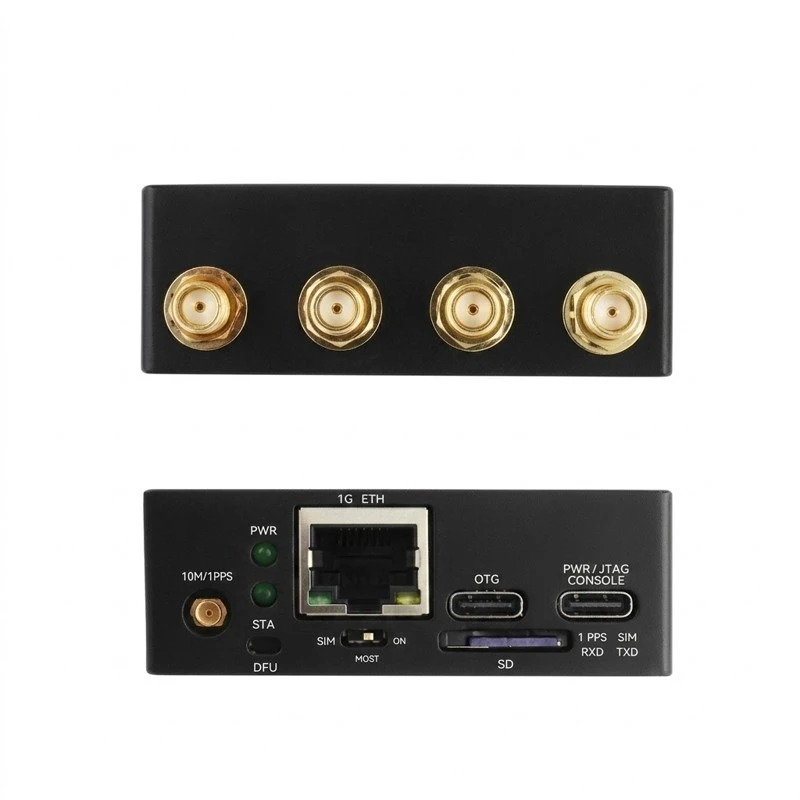

ANTSDR E310 Software Defined Radio - ADI AD9361/AD9363 ZYNQ7020
The ANTSDR E310 is a professional portable software defined radio (SDR) platform designed for wireless communication research, signal processing, and RF development. Built on the ADI AD9361/AD9363 RF transceiver and Xilinx ZYNQ 7020 SoC, it delivers exceptional RF performance in a compact form factor.
Key Features
- Compatible with and improved upon Analog Devices ADALM-Pluto platform
- Supported by multiple open-source communities worldwide
- Full open-source hardware and software (schematics and source code available)
- Standalone operation without host PC
- Superior RF performance with optimized signal chain
- 2x2 MIMO capability for advanced applications
Technical Specifications
| Parameter | Specification |
|---|---|
| RF Transceiver (RFIC) | ADI AD9361 / AD9363, Dual TX + Dual RX, 2x2 MIMO |
| Frequency Range | 70 MHz - 6 GHz (AD9361) / 325 MHz - 3.8 GHz (AD9363) |
| Instantaneous Bandwidth | Up to 56 MHz (AD9361) / 20 MHz (AD9363) |
| ADC/DAC Resolution | 12-bit |
| Baseband Processor | Xilinx ZYNQ 7020, Dual-core ARM Cortex-A9 |
| FPGA Resources | 85K logic cells, 220 DSP slices |
| Memory | 1 GB DDR3 RAM, 256 Mbit QSPI Flash |
| Ethernet | 1x Gigabit Ethernet |
| USB | 1x USB 2.0 Type-C |
| Debug Interface | USB-JTAG, USB-UART |
| Expansion | GPIO extension port |
| Synchronization | External 10 MHz reference input, PPS input |
| Clock Accuracy | 0.5 ppm VCTCXO, adjustable to ±5 ppb via digital PLL |
| Software API | ADI IIO (pre-installed), C/C++, Python |
| Compatibility | GNU Radio, MATLAB, LabVIEW, SDR#, GQRX |
Applications
- Wireless communication research and education
- Spectrum monitoring and analysis
- Amateur radio and digital modes
- IoT protocol development
- Radar and direction finding
- MIMO and beamforming experiments
- UAV communication link development
- Signal intelligence and electronic warfare research
Product Family
| Model | Description |
|---|---|
| E310 | High-performance flagship SDR, standalone operation |
| E200 | Cost-effective, lightweight and portable |
| T355 | Highly integrated, enhanced performance |
| U220 | USB 3.0 high-bandwidth SDR |
| U200 | Ultra-compact high-bandwidth SDR |
Package Contents
- 1x ANTSDR E310 SDR Unit
- 2x SMA Antennas
- 1x USB Type-C Cable
- 1x Ethernet Cable
- 1x Power Adapter
- 1x Carrying Case
