1-3GHz 100W High Power Broadband Amplifier Module GaN Class AB
1-3GHz 100W High Power Broadband Amplifier Module GaN Class AB - high-performance GaN broadband RF power amplifier with 100W (50-51 dBm) output, 1-3 GHz frequency range, Class AB design with built-in protection for test equipment and communication systems.
Overview

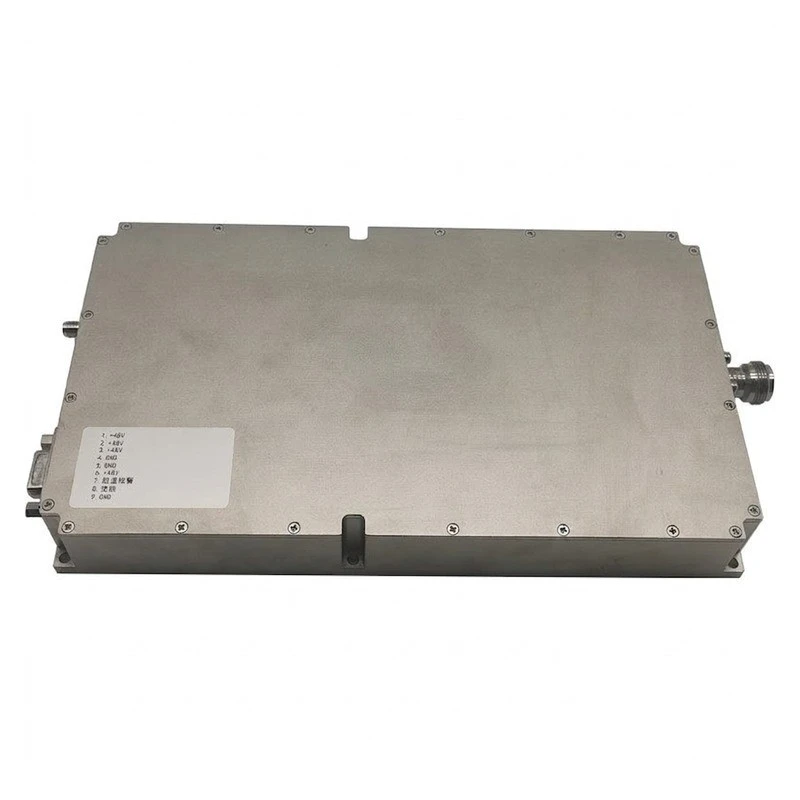

The UWBPA1G3G-100W is a high-performance GaN broadband power amplifier covering 1-3 GHz with 100W (50-51 dBm) continuous wave output. Class AB design ensures linearity while built-in protection circuits provide reliability for demanding RF applications.
Key Features
- GaN ultra-wideband design: 1-3 GHz full band coverage
- High output power: 100W (50-51 dBm)
- High gain: 50-54 dB
- Class AB linear amplifier
- Built-in over-temperature protection with auto shutdown
- 50 ohm input/output impedance
- Compact: 170 x 130 x 22 mm
- SMA-Female RF connectors
Specifications
| Parameter | Value |
|---|---|
| Model | UWBPA1G3G-100W |
| Frequency Range | 1-3 GHz |
| Output Power (CW) | 100W (50-51 dBm) |
| P1dB | 47 dBm |
| Gain | 50-54 dB |
| Input VSWR | < 1.5:1 |
| Supply Voltage | 36V (34-38V) |
| Supply Current | 3-13A |
| Dimensions | 170 x 130 x 22 mm |
| RF Connectors | SMA-Female |
| DC Interface | DB9 |
| Operating Temp | -30 to +60°C |
Applications
- Test Equipment
- Communication Systems
- Electronic Warfare
- Signal Processing
- Laboratory RF Testing
