Analog FPV Camera 1/1.8 Inch Starlight Sensor 1200TVL, 165 Degree FOV, 3g (CADDX Baby Ratel 2)

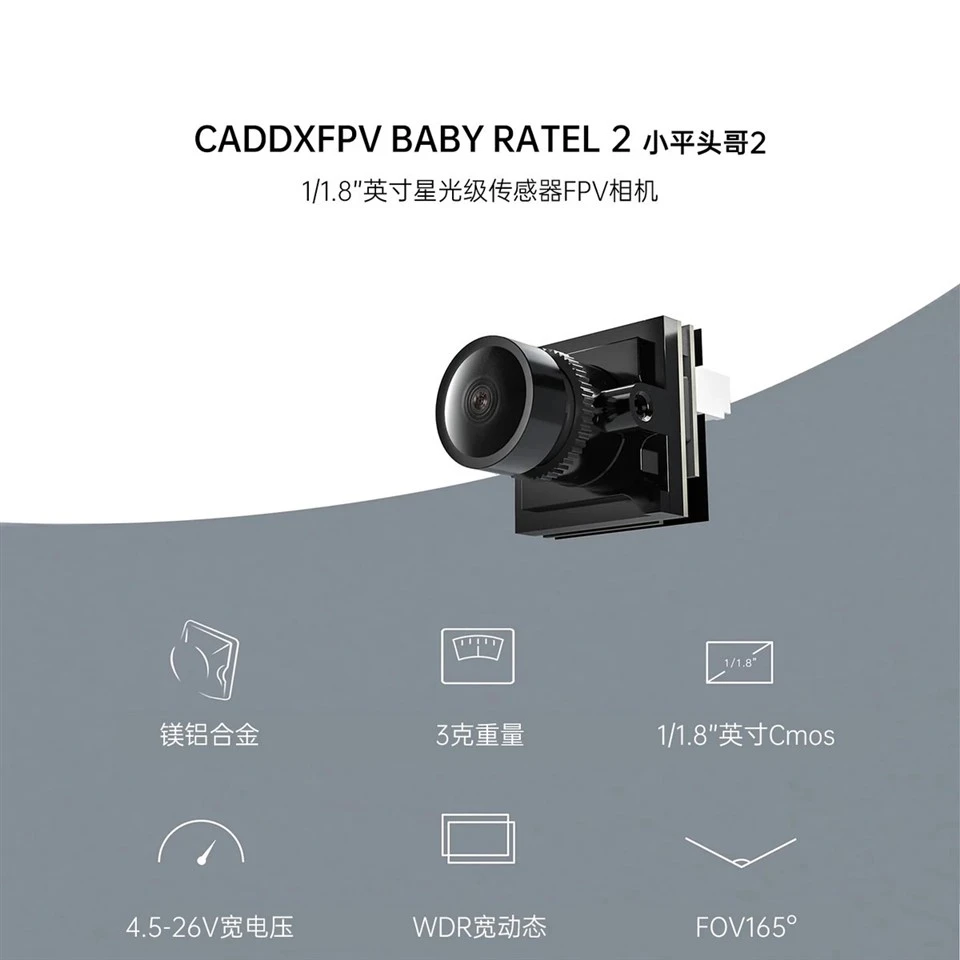

CADDX Baby Ratel 2 is an ultra-light analog FPV camera: a 1/1.8 inch starlight HDR sensor, 1200TVL, 165 degree FOV, 1.8 mm lens and a magnesium-aluminium alloy body of only 3 g. It supports day and night flying and includes a 19x19 mm bracket for wider frame compatibility.
Key features
- 1/1.8 inch starlight HDR sensor, 1200TVL, Super WDR, 3DNR, 0.0001 Lux
- 165 degree wide viewing angle, suited to freestyle flying

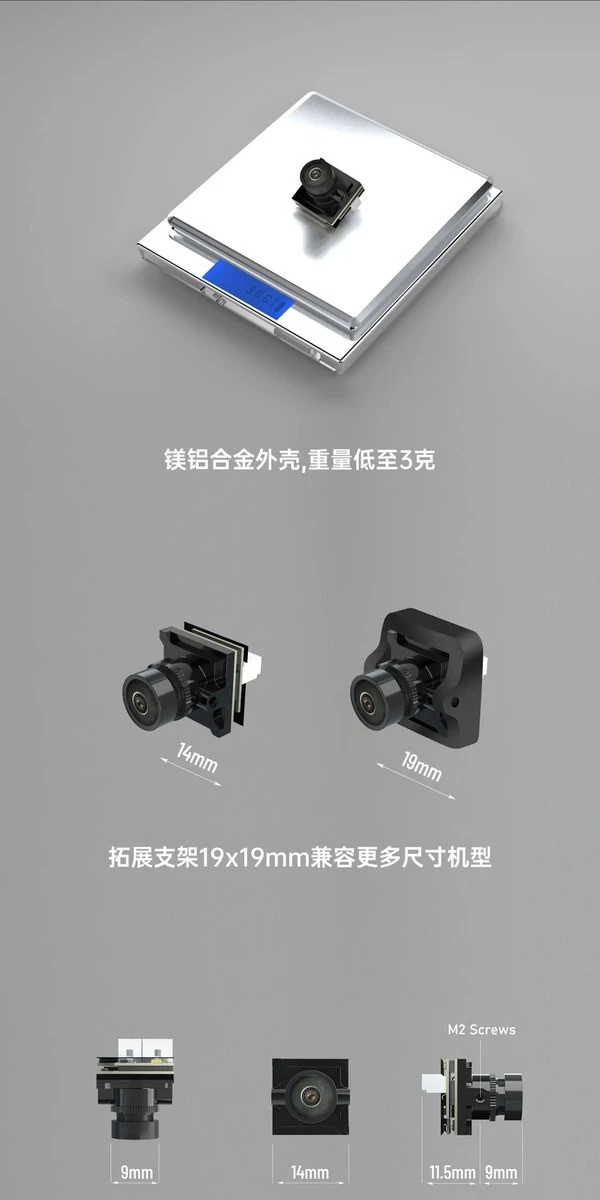

- Magnesium-aluminium alloy housing, only 3 g net weight, 14 x 14 mm
- Extension bracket for 19 x 19 mm mounting, compatible with more frame sizes
- NTSC / PAL and 4:3 / 16:9 switchable; OSD menu in multiple languages
- Package: camera, screw pack, OSD menu board, 2-pin and 3-pin silicone cables, 14-19 mm extension bracket, hex key, warranty card
Technical specifications
| Parameter | Value |
|---|---|
| Model | BABY RATEL 2 |
| Image sensor | 1/1.8 inch starlight sensor |
| Horizontal resolution | 1200TVL |
| FOV | 165 degrees |
| Lens | 1.8 mm |
| Video system | NTSC & PAL (changeable) |
| Image ratio | 4:3 & 16:9 (changeable) |
| WDR / noise reduction | Super WDR / 3DNR |
| Minimum illumination | 0.0001 Lux |
| Video output | CVBS |
| Day / night | External / internal / B&W / color |
| Electronic shutter | PAL: 1/50-100,000; NTSC: 1/60-100,000 |

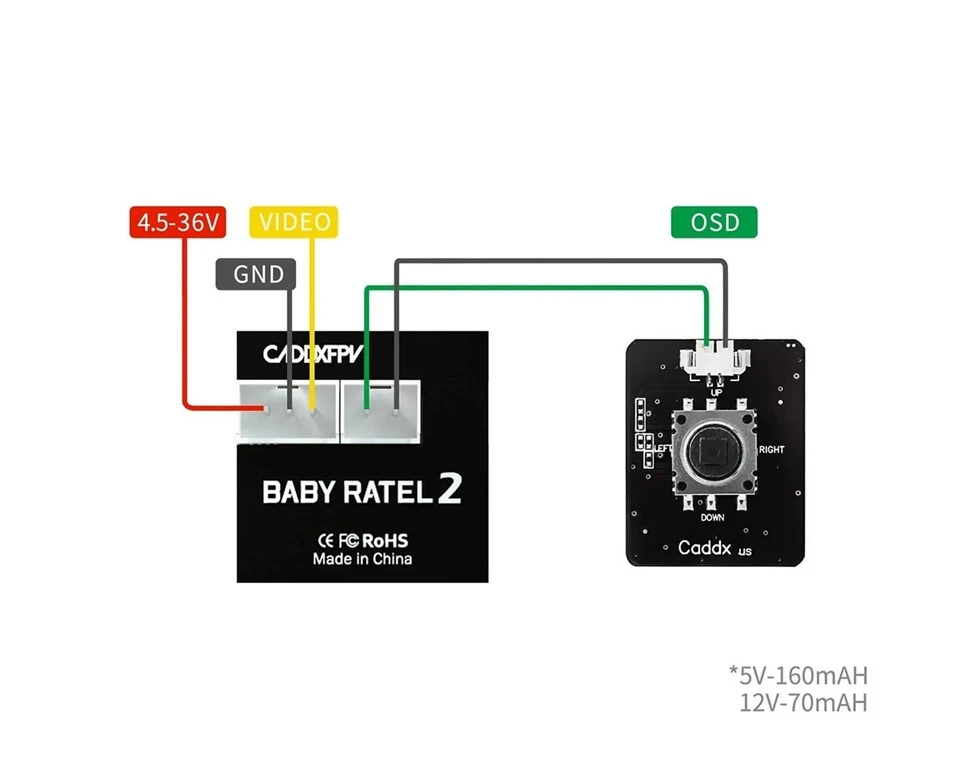

| Power input | 4.5-26 V (5 V 160 mAh; 12 V 70 mAh) |
| Operating temperature | -20 to +60 C |
| Weight | 3 g (net) |
| Dimensions | 14 x 14 x 20.5 mm |
Product images and specifications
