Product Overview

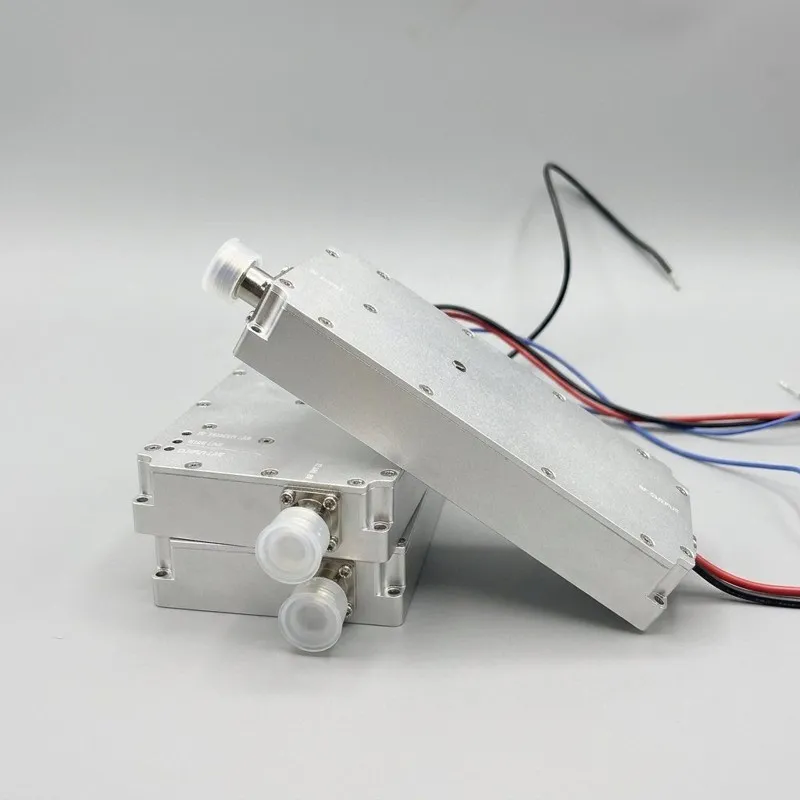

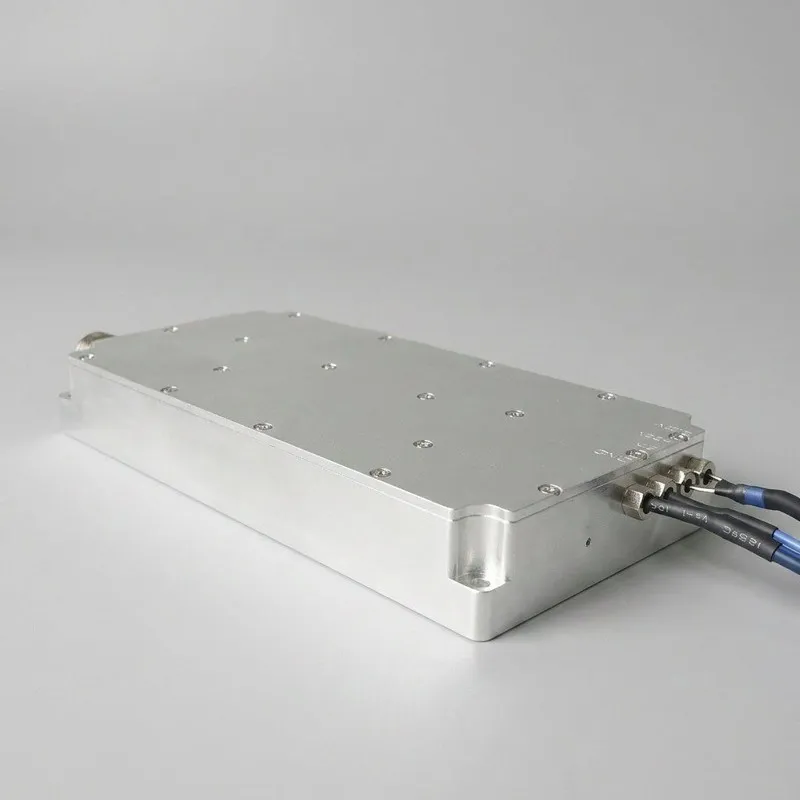

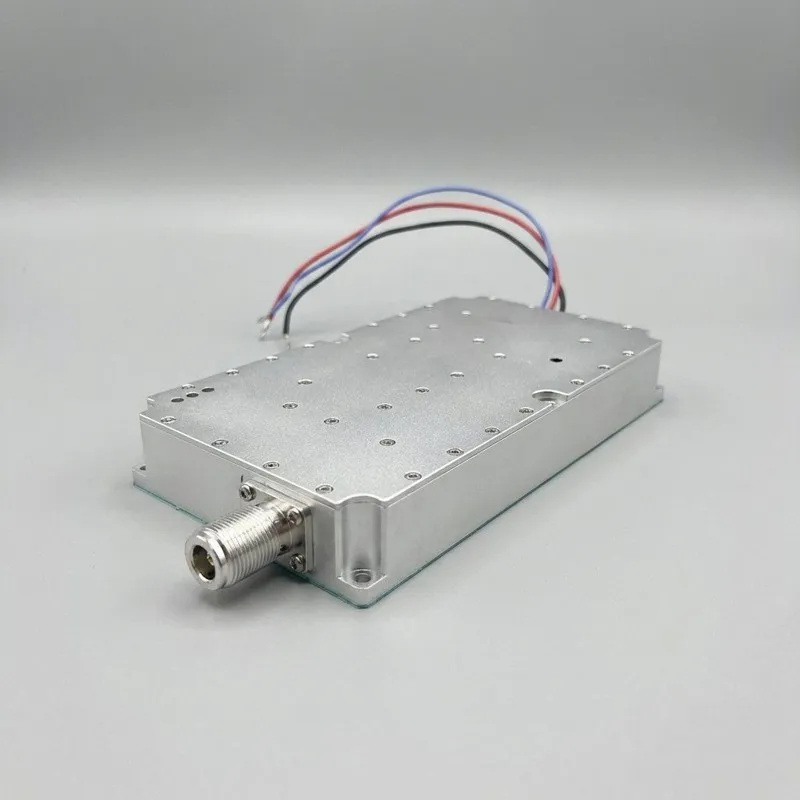

This 200W RF Power Amplifier Module operates in the 3300-3600MHz frequency range, designed specifically for integration into counter-drone jamming systems. It provides the final-stage power amplification needed to achieve effective drone signal disruption at operational distances.
Target Frequency Application
This module specifically targets the 2.5-4GHz band, which is used for extended WiFi and 5G NR drone communication bands. By concentrating 200W of RF energy in this specific band, the module achieves effective link disruption at significantly greater range than broadband alternatives.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 3300-3600MHz |
| Output Power | 200W |
| Technology | GaN HEMT |
| RF Connector | SMA Female (50 ohm) |
| Supply Voltage | DC 28V (typical) |
| Cooling | Heatsink + forced air |
| Dimensions | Compact module form factor |
| Operating Temp | -20 to +55 C |
System Integration
This module is designed for plug-and-play integration into multi-channel counter-drone systems:
- Input: Standard SMA connector accepts signal from DDS source or control board
- Output: SMA output connects directly to broadband antenna via short cable
- Power: Single DC supply with built-in voltage regulation
- Control: Enable/disable via TTL logic level for channel switching
- Protection: Built-in VSWR protection prevents damage from antenna mismatch
OEM & Bulk Orders
As the manufacturer, we support system integrators with:
- Volume pricing from 10+ units
- Custom frequency ranges within our technology platform
- Modified output power levels (25W to 200W)
- Custom connector types and mounting configurations
- Technical datasheets and integration support
- Sample units for evaluation
MOQ: 1 unit for evaluation, 10+ for production pricing. Request datasheet and pricing.
