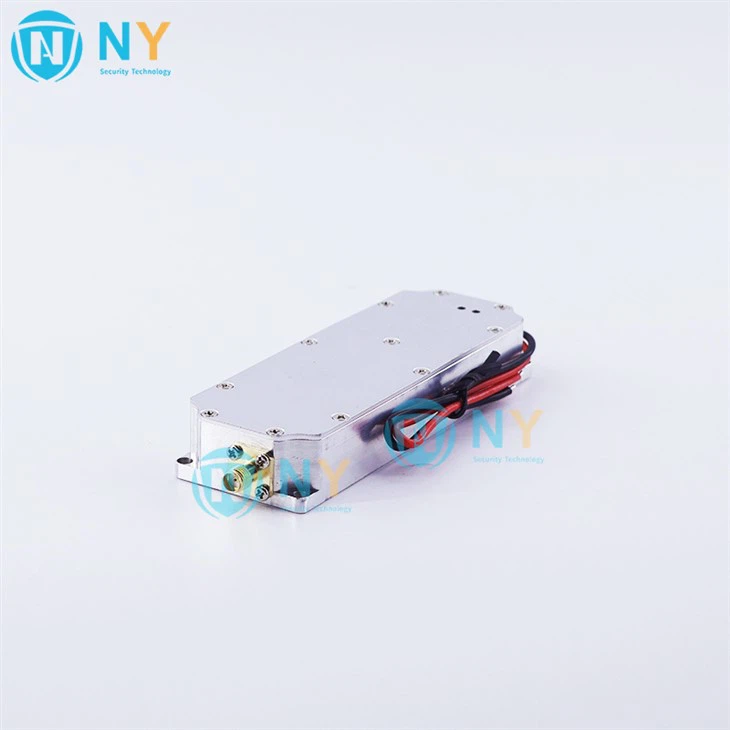

Product introduction
The gallium nitride (GaN) communication module is a core component of the radio frequency front-end designed using the high-frequency, high-power and high-efficiency characteristics of gallium nitride semiconductor materials. It is widely used in high-frequency fields such as 5G base stations, satellite communications, radar, and electronic warfare.The following is a detailed analysis of its technical characteristics, applications and development trends：
Key applications of communication modules
(1) 5G base station RF front end
Massive MIMO antenna: GaN PA (power amplifier) supports multi-channel high power output to improve coverage.
Energy efficiency ratio optimization: Compared with LDMOS, the power consumption of GaN base stations is reduced by 20%-30% (for example, Huawei 5G base stations use GaN radio frequency modules).
(2) Satellite communications
Low-orbit satellite (LEO): GaN devices are used for on-board phased array antennas (such as Ka-band communication for Starlink satellites).
Deep space communication: NASA uses GaN amplifiers in deep space probes (such as Mars missions).
(3) Military communications and Electronic warfare
Radar system: T/R module of active phased array radar (AESA) (such as F-35 fighter radar).
Electronic interference: The wide-band GaN module can quickly switch the interference frequency band.
(4) Civil high-speed communication
Millimeter wave backhaul: an alternative to high-speed optical fiber between cities (such as 60GHz point-to-point communication).
WiGig (60GHz WiFi): Short-range ultra-high-speed data transmission.
200-350Mhz(50W)
350-500Mhz(50W)
500-650Mhz(50W)
650-850Mhz(50W)
850-1100Mhz(50W)
1100-1300Mhz(50W)
1300-1500Mhz(50W)
1500-1650Mhz(50W)
1900-2100Mhz(50W)
2100-2300Mhz(50W)
2300-2500Mhz(50W)
2500-2700 Mhz(50W)
2700-2900Mhz(50W)
2900-3100Mhz(50W)
3100-3300Mhz(50W)
3300-3500Mhz(50W)
Product features
GaN-based active interference generation module
Function: Use the high-frequency characteristics of GaN devices to generate controllable interference signals (for electronic confrontation or testing).
Implementation method：
Hardware layer: GaN power amplifier + fast modulation circuit, which generates high-frequency noise, pulse or frequency modulation interference.
Control layer: Combining GAN (generating an adversarial network) to dynamically optimize the interference waveform, making it difficult for the interference signal to be filtered or decoded.
Case：
Generate adaptive interference signals for specific communication protocols (such as 5G NR frame structure).
Simulate enemy radar signals for military electronic warfare training.
Anti-interference module for GaN communication system
Technical direction：
Hardware reinforcement：
Optimize the layout and packaging of GaN devices to reduce parasitic inductance/capacitance (such as common source and common gate structures).
Integrated EMI filter (such as LTCC filter).
Signal processing：
Interference suppression based on deep learning (such as using CNN to identify and filter out interference frequency bands).
Real-time spectrum perception + dynamic frequency transition (combined with GaN's high-frequency agility).
GAN assisted design：
Use GAN to generate extreme interference scenarios and train anti-interference algorithms.
Generate confrontation samples to test the robustness of the communication link.
Application scenario
military：
Anti-jamming module for UAV communication.
Radar jammer (suppression/deceptive interference).
Civilian：
5G base stations are resistant to neighborhood interference.
Satellite communication (to avoid interstellar interference).
Shenzhen Nuoxinyuan Co., Ltd.
The headquarters was established in 2015 and has been engaged in the communications industry for 10 years. The company brings together senior engineers from the fields of network security, information protection and radio communications. The company's products are efficient and stable, providing customers with efficient and reliable drone defense solutions to ensure network security and stability.Through technological innovation and teamwork, we provide comprehensive low-altitude drone defense solutions to provide customers with security.
Shenzhen Nuoxintong Co., Ltd.,
The headquarters was established in 2015. We provide low-altitude defense solutions at home and abroad. We have many cases and successful experiences.
1. Packing & Delivery :
Delivery time Normally 3-10 working daysafter received the deposit..ltalso depends on order Qty.
2. Packing :
Standard export packingor customized packingas your request.
3. Payment term :
T/T,Western Union, Paypal, Credit Card.if need other terms, let's discuss.
4. Delivery term :
FOB/EXW.If need otherterms, let's discuss.
5. Shipment :
Express,Air or Ocean ship.Professional shipping forwarder, more fast delivery and on time.
FAQ :
Q1: Are you a factory or trading company?
A1: We are a factory ,our factory locates in LongGang District,Shenzhen,Guagndong.Welcome to visit us.
Q2: How about the Shipping Method?
A2: DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workable. In one words, wecould do any shipments you
wanted.
Q3: How about the delivery date?
A3: In General, the delivery date will be 5-7 working days for normal buy quantity. But if bigger orderplease check us further.
Q4: How about the label and the logo?
A4: Customize label and logo is workable
Q5: How about the MOQ?
A5: 1 to 20 pcs according to different product.
Q6: How to do if the product i received is defective?
A6: Our strict quality control ensures 100% pass rate. But it can be damaged in the way. Please kindlyshare the defective product photo or video to let us know where the problem is. We will make the compen-sation accordingly or send you a part or product.
