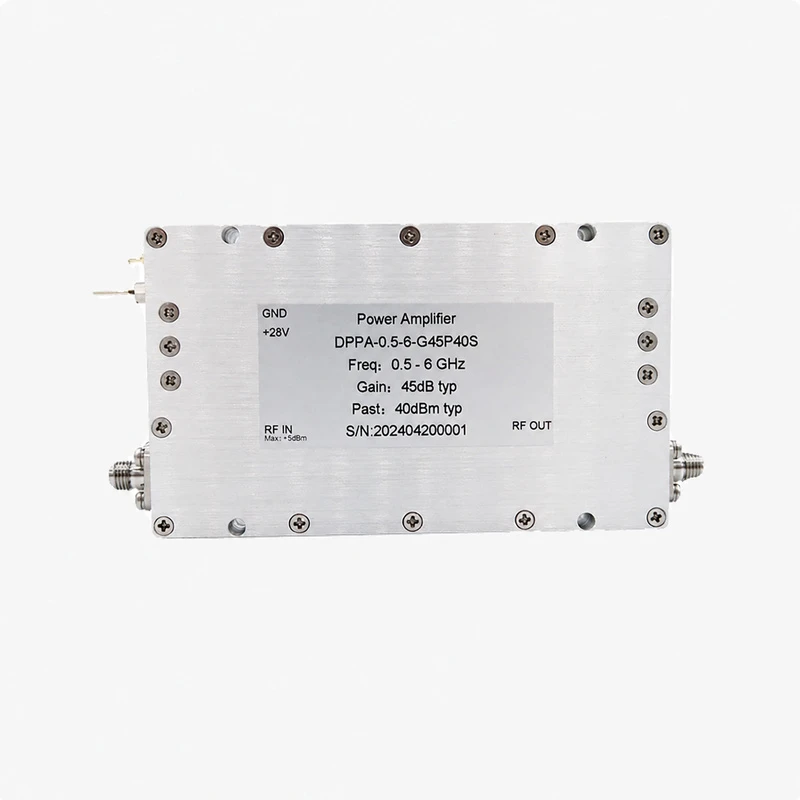

DPPA-0.5-6-G45P40S RF Power Amplifier
The DPPA-0.5-6-G45P40S rf power amplifier covers 0.5-6 GHz with 45 dB typical gain. Typical saturated output power is 40 dBm. SMA female RF ports and a +28 V / 1.7 A supply are specified.

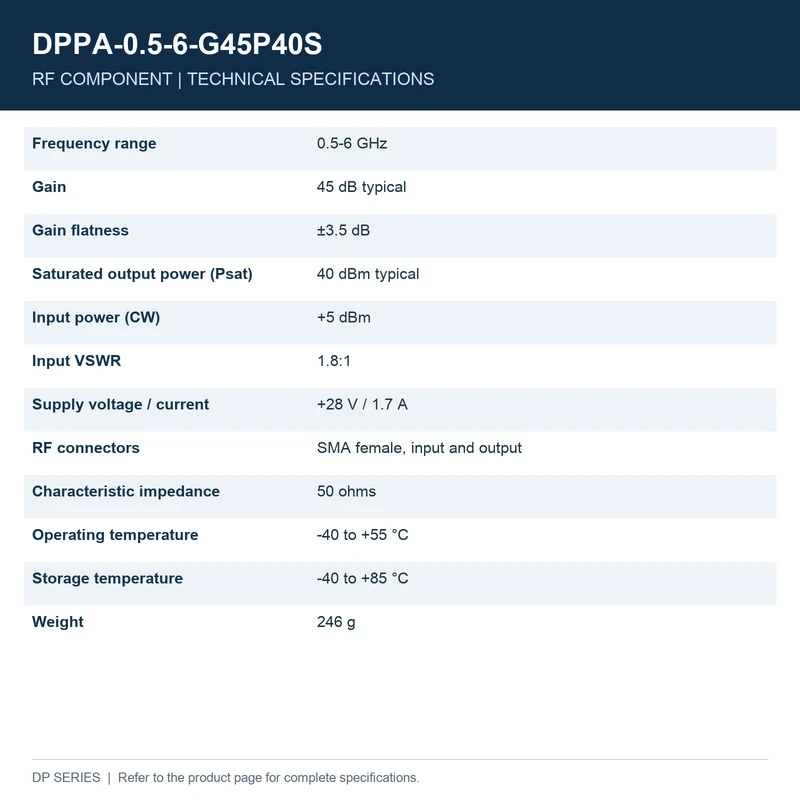

Technical specifications
| Parameter | Value |
|---|---|
| Model | DPPA-0.5-6-G45P40S |
| Frequency range | 0.5-6 GHz |
| Gain | 45 dB typical |
| Gain flatness | ±3.5 dB |
| Saturated output power (Psat) | 40 dBm typical |
| Input power (CW) | +5 dBm |
| Input VSWR | 1.8:1 |
| Supply voltage / current | +28 V / 1.7 A |
| RF connectors | SMA female, input and output |
| Characteristic impedance | 50 ohms |
| Operating temperature | -40 to +55 °C |
| Storage temperature | -40 to +85 °C |
| Weight | 246 g |
Product images and specifications
